Case IH Tractor Parts
Showing 57–58 of 288 resultsSorted by popularity
-

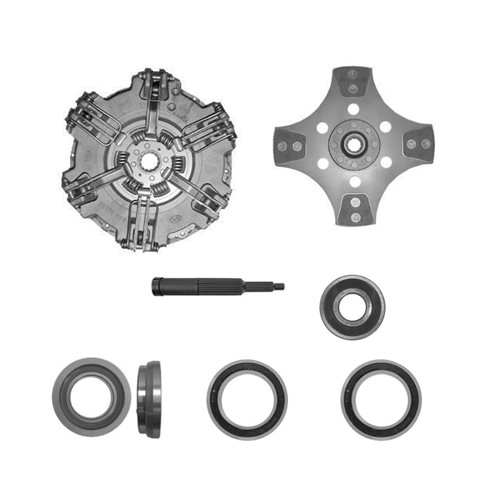

JX70 Case IH Tractor 11″ Dual Stage Clutch Kit with Six Mounting Holes
This Is a New 11” Dual Stage Clutch Kit Assembly The Kit Comes With 11” Dual Stage Pressure Plate With 6 Levers With 11’ 6 Pad Ceramic Button Disc With 1-9/16’ 14 Spline Hub 11’’ 4 Pad Ceramic Button Disc With 15/16’ 10 Spline Release Bearing with Collar OD 3.550” ID 1.968’’ Thickness .845’’ Release Bearing with Out Collar OD 3.147” ID 1.968’’ Thickness .620’’ PTO Release Bearing OD 4.330” ID 2.758’’ Thickness 0.785’’ Pilot Bearing OD 1.850” ID .669’’ Thickness 0.550’’ Alignment Tool Large Spline 1-9/16’ 14 Spline Small Spline 1’ 10 Spline Pilot Diameter 0.669’ Flywheel Step .020” $950.0010 left in stock -
JX60 Case IH Tractor 11″ Dual Stage Clutch Kit with Six Mounting Holes
This Is a New 11” Dual Stage Clutch Kit Assembly The Kit Comes With 11” Dual Stage Pressure Plate With 6 Levers With 11’ 6 Pad Ceramic Button Disc With 1-9/16’ 14 Spline Hub 11’’ 4 Pad Ceramic Button Disc With 15/16’ 10 Spline Release Bearing with Collar OD 3.550” ID 1.968’’ Thickness .845’’ Release Bearing with Out Collar OD 3.147” ID 1.968’’ Thickness .620’’ PTO Release Bearing OD 4.330” ID 2.758’’ Thickness 0.785’’ Pilot Bearing OD 1.850” ID .669’’ Thickness 0.550’’ Alignment Tool Large Spline 1-9/16’ 14 Spline Small Spline 1’ 10 Spline Pilot Diameter 0.669’ Flywheel Step .020” $950.0010 left in stock
