Challenger Tractor Parts
Showing 4–6 of 7 results
-

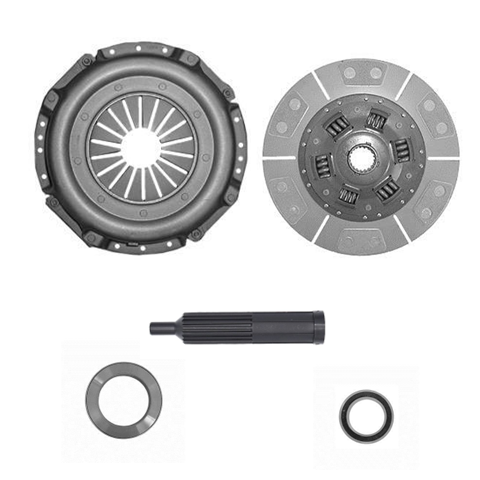

MT275B Challenger Tractor 9-1/2″ Single Stage Clutch Kit Assembly
This Is a New 9-1/2” Single Stage Clutch Kit Assembly The Kit Comes With 9-1/2’’ Single Stage Diaphragm Pressure Plate 9-1/2’’ Woven Clutch Disc With 1-3/8’’ 19 Spline Hub Release Bearing OD 3.468” ID 2.166” Thickness .866” Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313” Alignment Tool Large Spline 1-3/8” 19 Spline $210.0010 left in stock -
MT285 Challenger Tractor 9-1/2″ Single Stage Clutch Kit Assembly
This Is a 9-1/2” Remanufactured Single Stage Clutch Kit Assembly The Kit Comes With 9-1/2” Remanufactured Pressure Plate with 3 Levers 1-3/8” 19 Spline Hub 9-1/2” Woven Clutch Disc with 15/16” 13 Spline Hub Release Bearing OD 3.450” ID 2.164” Thickness .765” Pilot Bearing OD 1.250” ID 0.590” Thickness 0.350” Flywheel Step Flat The Pressure Plate Must Be Sent in To Be Rebuilt $430.0010 left in stock -
MT285B Challenger Tractor 11″ Single Stage Clutch Kit Assembly
This Is a New 11’’ Single Stage Clutch Kit Assembly The Kit Comes With 11’’ Diaphragm Pressure Plate 11’’ Clutch Disc with Six Pads 1-3/8’’ 19 Spline Hub Release Bearing OD 3.468’’ ID 2.166” Thickness .866’’ Pilot Bearing OD 1.250’’ ID 0.059” Thickness 0.350’’ Alignment Tool Large Spline 1-3/8” -19 Tooth Spline Pilot Diameter 0.059” Flat Flywheel Step Some Tractor Models Do Not Require Pilot Bearing $325.0010 left in stock
