McCormick Tractor Parts
Showing 22–24 of 24 results
-
CX95 McCormick Tractor 12-1/4″ Single Stage Clutch Kit Assembly
This Is a New 12-1/4’’ Single Stage Clutch Kit Assembly The Kit Comes With 12-1/4’’ Diaphragm Pressure Plate 12-1/4’’ Clutch Disc with Seven Pads 1-1/8’’ 10 Spline Hub Release Bearing OD 4.001” ID 2.374” Thickness 0.836” Pilot Bearing OD 1.850” ID .787” Thickness .551” Alignment Tool Large Spline 1-5/8’ 10 Spline Small Spline 1-1/8” 10 Spline Pilot Diameter 0.787” Flat Flywheel Step $605.0010 left in stock -
ST47A AGCO-Allis Tractor 11″ Single Stage Clutch Kit Assembly
This Is a New 11’’ Single Stage Clutch Kit Assembly The Kit Comes With 11’’ Diaphragm Pressure Plate 11’’ Clutch Disc with Six Pads 1-3/8’’ 19 Spline Hub Release Bearing OD 3.468’’ ID 2.166” Thickness .866’’ Pilot Bearing OD 1.250’’ ID 0.059” Thickness 0.350’’ Alignment Tool Large Spline 1-3/8” -19 Tooth Spline Pilot Diameter 0.059” Flat Flywheel Step Some Tractor Models Do Not Require Pilot Bearing $325.0010 left in stock -

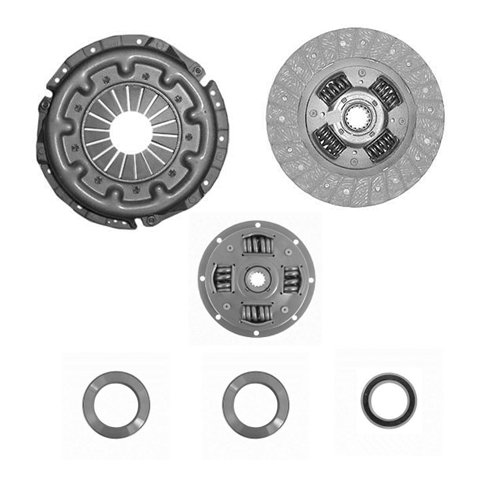

X135 McCormick Tractor 9-1/2″ Single Stage Clutch Kit With PTO Flywheel Hub
This Is a New 9-1/2’’ Single Stage Clutch Kit Assembly with PTO Hub The Kit Comes With 9-1/2” Diaphragm Single Stage Pressure Plate 9-1/2” Woven Clutch Disc With 1-3/16” 16 Spline Hub Release Bearing OD 2.900” ID 1.771” Thickness .700” Release Bearing OD 3.468” ID 2.166” Thickness .866” Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313” PTO Hub (HUB 25/32”) Spline 14 Flywheel Step Flat $350.0010 left in stock
