D40 Case IH Tractor 9-1/2” Single Stage Clutch Kit Assembly

Description

This Is a New 9-1/2” Single Stage Clutch Kit Assembly

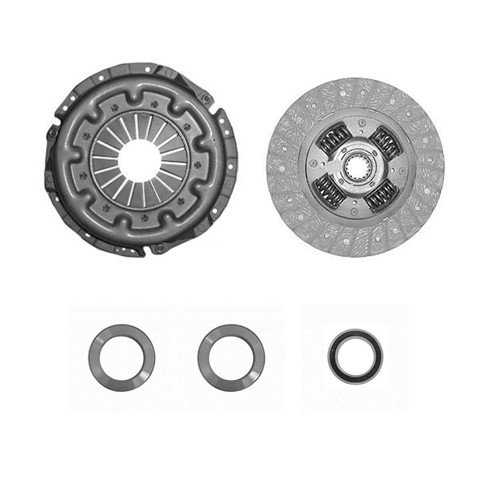

The Kit Comes With

9-1/2’’ Single Stage Diaphragm Pressure Plate

9-1/2’’ Woven Clutch Disc With 1-3/16’’ 16 Spline Hub

Release Bearing OD 2.900” ID 1.771” Thickness .700”

Release Bearing OD 3.468” ID 2.166” Thickness .866”

Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313”
